Mono Wafer 125*125mm Parameter Spec

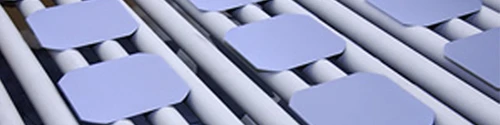

Mono Wafer 125*125mm
|
Parameter
|
Spec
|
Unit
|
| Type |
Mono Solar Wafer
|
|
| Square |
90 ± 0.3
|
degree
|
| Type-Dopant |
P/Boron
|
|
| Crystal Orientation |
<100> ± 1
|
degree
|
| Oxygen Concentration |
≦1.0 x 1018
|
atoms/cm3
|
| Carbon Concentration |
≦1.0 x 1017
|
atoms/cm3
|
| Dislocation Density (Etching Pits) |
≦2000
|
ea/cm3
|
|
Parameter
|
||
| Resistivity |
0.5 ~ 3.0
|
ohm-cm
|
| Lifetime |
≧10
|
μs
|
|
Geometry
|
||
| Geometry |
Pseudo Square
|
|
| Thickness |
200 ± 20
|
μm
|
| TTV |
≦30
|
μm
|
| Dimension (W x W) |
125 x 125 ± 0.5
|
mm
|
| Diameter (φ) |
165 ± 0.5
|
mm
|
| Saw Marks |
≦15
|
μm
|
| Surface |
As cut & cleaned
|
|
| Edge Chip |
None
|
|
| BOW |
≦30
|
mm
|
| WARP |
≦30
|
mm
|
